How to Set Up Port Forwarding in Windows 10

Every now and then, you’ll stumble upon an app or a game that requires you to do something called “port forwarding.” Without port forwarding, “inbound” traffic and data coming in from the Internet won’t be able to communicate with the app/game, and you won’t be able to carry out certain Internet-based functions of that software. This tutorial will show you how to set up port forwarding in Windows 10.

Note: you may also need to set up port forwarding on your router, for which we have a separate guide.

First, press the Win key on your keyboard, then type firewall into the Start search menu and click “Windows Defender Firewall.”

In the left pane click “Advanced settings” to open the Firewall rules window. As port forwarding generally involves inbound traffic (i.e. traffic coming to your PC from a company’s data centres or servers), click “Inbound Rules” in the left pane.

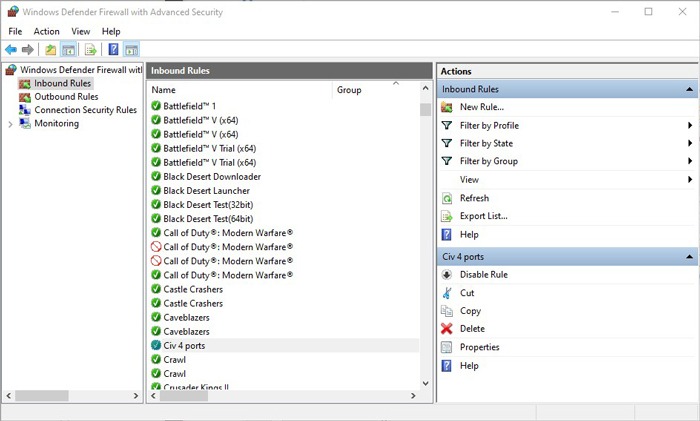

Set Up Port Forwarding Windows 10 Inbound RulesIf you’ve had your PC for a while, you should see a long list of “Rules” in the middle pane, applying to the various apps, services and software that you allow to deliver traffic to your PC.

To get an idea of how ports work, right-click an entry in the list and click Properties.

You’ll see the protocol type (usually TCP or UDP, though there are various alternatives) as well as the “Local port” – the port in your firewall that you’re allowing the connection through.

Set Up Port Forwarding Windows 10 Rule Properties

The really important one here is the “Remote port,” which is the port the client (app, software that’s trying to connect with you) is using to connect.

With most apps, as with the picture above, a remote port is randomly assigned by the client, so it just defaults to “All ports” on the Windows firewall.

Create New Port Rules

Click “New Rule” in the right pane, then in the new window click Port. Choose whether the connection will use a TCP or UDP protocol (whichever app is asking for you to port forward should specify the protocol), then choose the ports you want to open.

You can allow “All local ports” or specify which local ports you want to open. You can specify a single port, a range of ports, or choose several ports separated by commas.

Set Up Port Forwarding Windows 10 New Rule Wizard

Click Next, then click “Allow the Connection.” Choose whether the connection should apply on your domain, your private home network, or a public network location (not recommended for security’s sake). On the next screen name the rule.

Once the the rule is created, it’ll join the big Inbound Rules list in the Advanced Security window.

Your new rule will now join your list of inbound rules where you can double-click it to modify it, make it apply only to specific programs and services, and so on.
Set Up Port Forwarding Windows 10 Programs ServicesAt any point, you can right-click the rule and select “Disable” or “Delete,” too.

And that’s it. Now you know how to set up port forwarding in Windows 10. You should also look into how to block programs using your firewall as well as a review of Windows Defender, asking whether it’s good enough to protect your PC.
